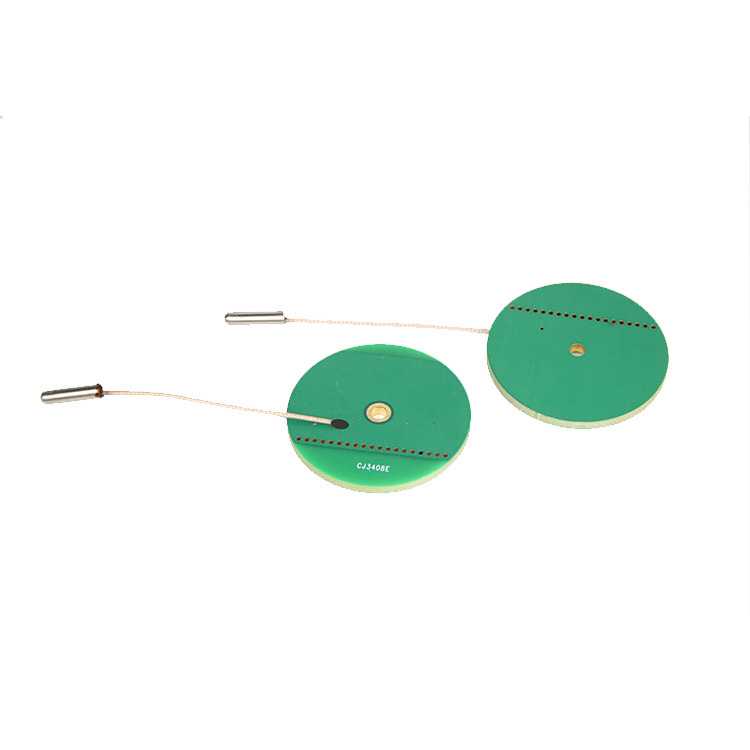

Metal and Liquid Temperature Monitoring RFID Tags
- RF Protocol: EPC Class 1 Gen 2; ISO18000-6C
- Operating Frequency: 902MHz～928MHz
- Chip Model: LTU32
- Memory: 96-bit EPC; 512-bit user memory; 128-bit TID
Our RFID Tag Maker factory specializes in producing state-of-the-art RFID tags designed specifically for monitoring temperature in metal environments or liquids. These innovative Metal and Liquid Temperature Monitoring RFID Tags offer reliable and accurate temperature tracking capabilities, making them ideal for a wide range of applications.
Product Overview:
- RF Protocol: EPC Class 1 Gen 2; ISO18000-6C
- Operating Frequency: 902MHz～928MHz
- Chip Model: LTU32
- Memory: 96-bit EPC; 512-bit user memory; 128-bit TID
- Read/Write Cycle: 100,000 times
- Data Retention: 50 years
- Sensitivity: -18dBm
- Temperature Range: -40～160°C
- Temperature Accuracy: ±1°C
- Protection Level: IP67
- Functionality: Read/Write
- Applicable Surface: Metal/Non-metal
Metal and Liquid Temperature Monitoring RFID Tags Operating Characteristics:
- Temperature Sensing Distance (EIRP=4W): 3m
- Polarization: Linear

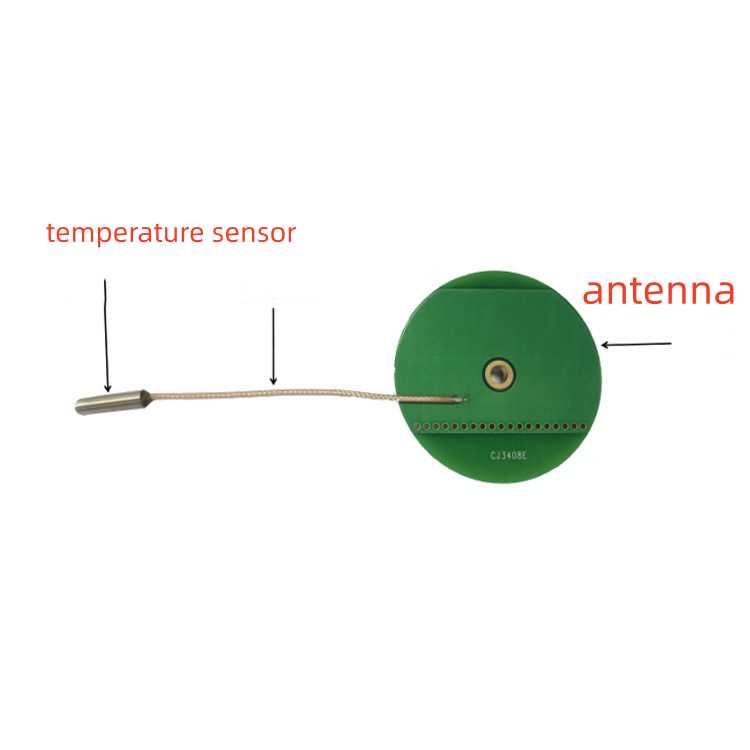

- Physical Parameters:
- Antenna Type: Etched Copper
- Encapsulation Material: FR4
- Antenna Color: Green
- Probe Material: Stainless Steel 3042
Applications:
- Real-time temperature monitoring inside metal enclosures.
- Temperature measurement in metal crevices.
- Internal temperature monitoring of liquids.
- Tracking and management of products with temperature monitoring requirements.
With our Metal and Liquid Temperature Monitoring RFID Tags, you can ensure precise temperature monitoring in metal environments or liquids, enabling effective management and optimization of your operations. Contact us today to learn more about our advanced RFID solutions and how they can benefit your business.
