NTAG213 Wet Inlay NFC Tag

Add to wishlistAdded to wishlistRemoved from wishlist 0

Enquiry

RFID TAG MAKERwet inlays come in many sizes, patterns, chips that you can choose from. Now, we are going to introduce the Ntag213 wet inlay NFC sticker to you, which is very popular with high-security performance and good compatibility.,

DESCRIPTION

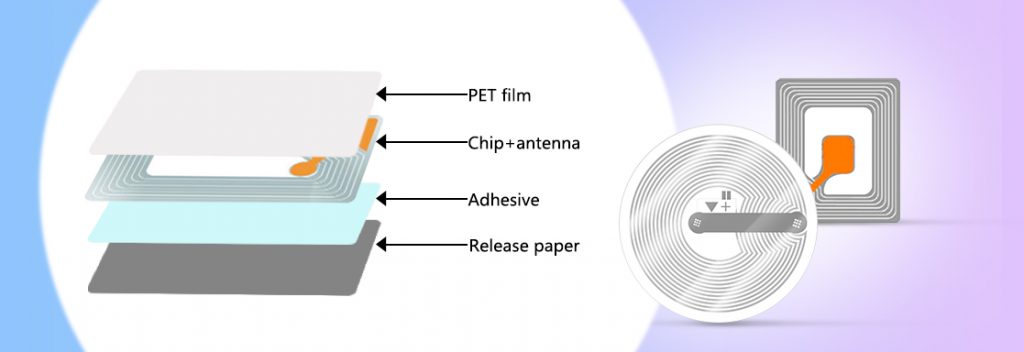

nfc wet inlay

What is Wet Inlay? Wet Inlay, one of the RFID Inlay, is composed of dry inlay, an adhesive layer, and release paper. Strictly speaking, it is a semi-finished product, which is an important part of RFID cards, RFID tags, RFID wristbands, and other RFID products. But Wet Inlay has an adhesive backing, like an RFID sticker, which is easy to stick onto surfaces. Therefore, it is also a low-cost RFID solution for batch-marking products that do not need to print information on the tag.

The Ntag213 Wet Inlay, embedded Ntag213 chip, features higher RF performance and Superior security, suitable for application with high-security performance requirements, such as payment, etc.

FEATURES

  1. Construction: Chip & Antenna+ Adhesive+ Release paper
  2. High-security performance & Good compatibility
  3. Operating frequency of 13.56MHz
  4. Reading distance: up to 100mm
  5. 144 bytes of user data
  6. Can be erased and reprogrammed about 10,000 times
  7. Wide application: Retail Environment, Social Media, Games & Toys, Location, Media & Ads, Business Cards, Loyalty Apps, Electronics Pairing, Product Authentication, Ticketing & Payment, Library Management, etc.

COMMONLY USED SIZE

We offer customized services, and our wet inlays come in various sizes you can choose from. Here are some commonly used sizes as follows.

Available Shape Commonly Used Size Available Chip

φ23mm Ntag213, Ntag215, Ntag216
35x35

35x35

35*35mm Ntag213, Ntag215, Ntag216
φ18mm

φ18mm

φ18mm Ntag213, Ntag215, Ntag216
11x26

11x26

11*26mm Ntag213, Ntag215, Ntag216



Parameters

Item NTAG213 Wet Inlay NFC Tag
Chip NTAG213
Frequency 13.56MHz
Protocol ISO14443A
Size 18*18mm, 30*30.5mm, 35*35mm, 42*42mm, 45*18mm,etc.
Memory 144 bytes
Reading distance 0-10cm
Write Endurance 100000 times
Working Temperature -25–65℃
Data Retention Time 10 years
Printing Options Silk-screen printing, Laser Engraving, CMYK full color, Pantone, etc.
Crafts Available Logo or number printing, Bar code, QR code, etc.
Samples Free samples are available upon request
